| Standard Features |
|
Automatic Microprocessor Controller |
- Thin Film Composite Membranes in SS Vessels
- Big Blue Carbon block and 5M Sediment Prefilters in
Housings.
- Automatic Inlet Feed Solenoid Valve
- System & Recycle Control Valves
- Low Pressure Pump Protection
- High Pressure RO Pump
- (4) Pressure Gauges: System Pressure, Concentrate
Pressure, Filter In and Filter Out.
- (3) Panel Mounted Flow Meters: Permeate, Concentrate
and Recycle Flow.
- Powder Coated Carbon Steel Frame
- Boxed and Palletized for Shipment
|
|
- Inlet Valve
- Low Pressure Switch
- Pre-Treatment Backwash/Lockout
- System On/Off According to Tank Level
(Floats Purchased Separately)
- Low Pressure Shutdown/Auto Restart
- Power On/ Pretreatment Lockout
- Storage Tank Full
|
| Why Applied Membranes? |
|
|
- 30 Years of experience with over 10,000 commercial/industrial AMI® water treatment systems in operation.
- Our products are being used in over 100 countries worldwide.
- Our customers include major national and international companies in every field of application.
- We stock more components for all sizes of RO systems than any other company.
- We have earned an enviable reputation for our product quality, performance reliability and business integrity.
|
| Key Features |
|
Applications |
- Compact, Heavy Duty, Powder Coated Frame
- Proven components used throughout the system
- Conservatively engineered for reliable long term
performance
- Factory tested to ensure trouble-free operation
|
|
- Water Stores
- Whole House
- Labs
- Large Office
- Institutions
- Ice Makers
- Spot Free Rinse /
Car Wash
|
- Humidification
- Misting
- Manufacturing
- Rinse Water
- Wide Variety of Other Applications
|

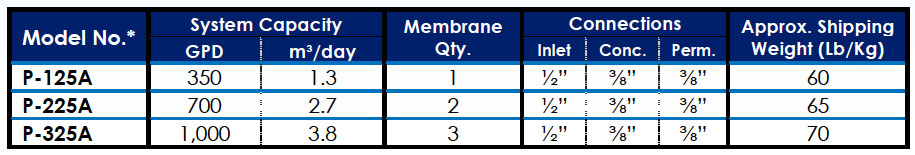

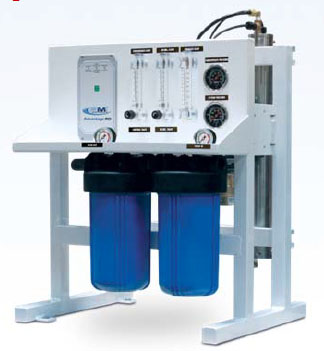

| Series P: 350 to 1,000 GPD |
 |
- 10” Big Blue Carbon Block and 5 Micron Sediment Filter
- 2.5” Diameter × 21” Length Thin Film Membranes
in SS Housings
- System Dimensions: 21.75”L × 20”W × 33”H
|
|
|

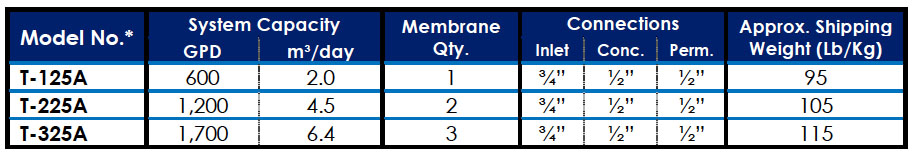

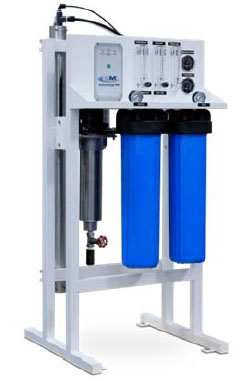

| Series T: 600 to 1,700 GPD |
 |
- 20” Big Blue Carbon Block and 5 Micron Sediment Filter
- 2.5” Diameter × 40” Length Thin Film Membranes in SS Housings
- System Dimensions: 23”L × 24”W × 55”H
|
|
|

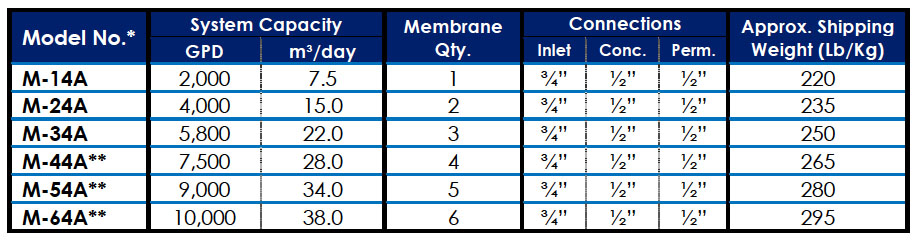

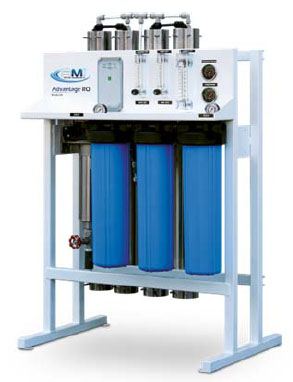

| Series M: 2,000 to 10,000 GPD |
 |
- 20” Big Blue Carbon Block Filters (2) and 5 Micron Sediment Filter
- 4” Diameter × 40” Length Thin Film Membranes in SS Housings
- System Dimensions: 35”L × 24”W × 55”H
|
|
 |
| Voltage Code and System Notes |
* Voltage: Please add our voltage codes to the end of the model number when ordering. Example: M-14A-116
Voltage Codes: • 116 = 110v, 1ph, 60hz (P & T Models only) • 216 = 220/230v, 1ph, 60hz • 215 = 220/230v, 1ph, 50hz
**M-44A, M-54A, and M-64A are available in 215 and 216 voltage only. 116 is not available for these models. |
| |
- Recommended Pre-Treatment Equipment: All pretreatment equipment and SDI test kits are available from Applied Membranes.
Water Softener: Hardness must be removed if present in feed water prior to RO to avoid scaling the membranes.
Multimedia filter: If feed water exceeds <1 NTU turbidity, or silt density index (SDI) of 3, media filter pretreatment recommended.
- Systems rated at: 77°F (25°C) using 1000 ppm sodium chloride solution operating at approx. 200 psi. Capacity Basis: 24 hrs/day
- Minimum feed pressure to RO System: 40-60 PSI. System capacity changes significantly with water temperature
- All dimensions and weights are approximate.
|
